Kyocera SIGER 1412CWH, Right-Hand Internal Grooving Holder with a 14.00mm Minimum Bore Diameter for Internal Grooving Applications

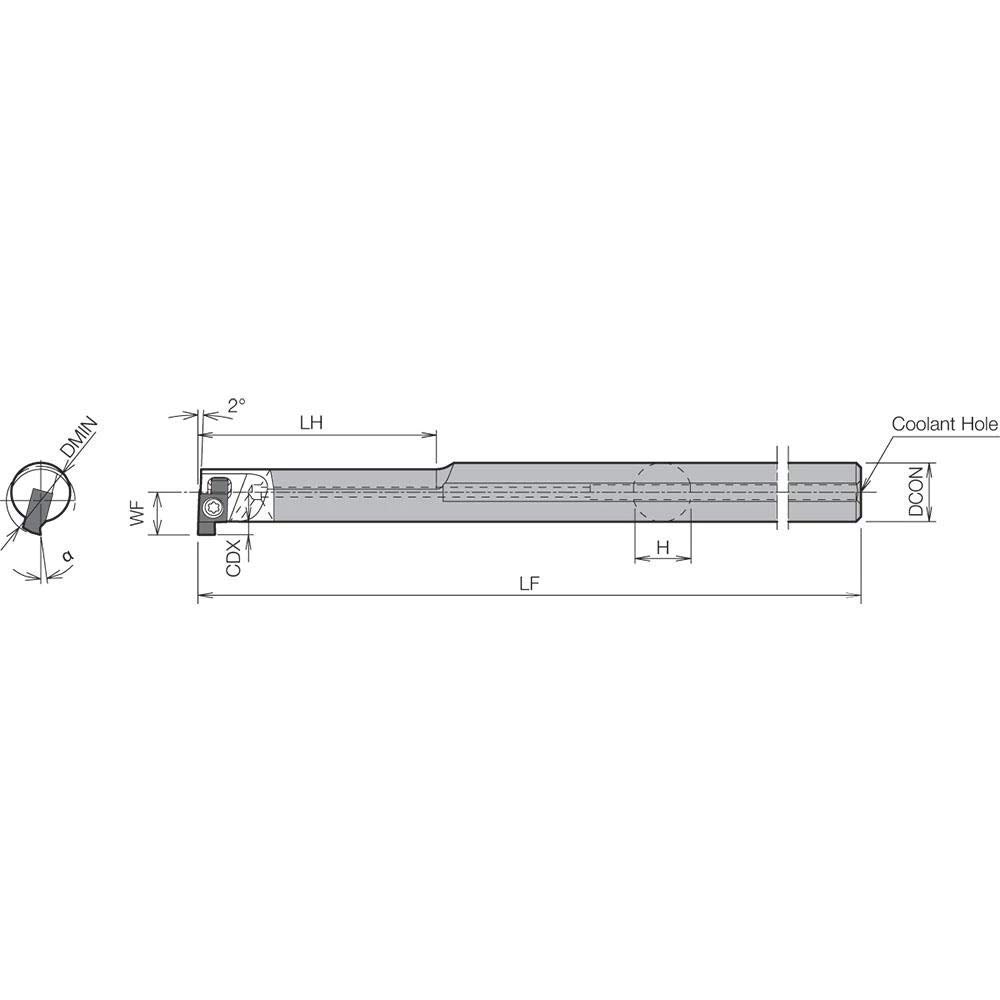

Right-Hand Toolholder with a Clamp Screw Insert Holding Design for Internal GroovingInternal screw clamp holder provides excellent chip evacuationVery stable machining with long tool lifeCompatible with Right-Hand GER…C, GER…CM, GER…CR InsertsProduct Details:Grooving Type: InternalHand of Holder: Right-HandSeries: SIGEToolholder Style: SIGELead Angle (Degree): Insert Reliant[DMIN] Minimum Bore Diameter (Decimal Inch): 0.5512[DMIN] Minimum Bore Diameter (mm): 14.00[DCON] Shank Diameter (Decimal Inch): 0.4724[DCON] Shank Diameter (mm): 12.00[H] Shank Height (Decimal Inch): 0.4488[H] Shank Height (mm): 11.40[LF] Functional Length (Decimal Inch): 5.9055[LF] Functional Length (mm): 150.00[LH] Head Length (Decimal Inch): 1.9685[LH] Head Length (mm): 50.00[WF] Cutting Edge Distance (Decimal Inch): 0.3425[WF] Cutting Edge Distance (mm)8.70[CDX] Max Depth of Cut (Decimal Inch): 0.0984[CDX] Max Depth of Cut (mm): 2.50[CW] Insert Cutting Width (Decimal Inch): 0.0394[CW] Insert Cutting Width (mm): 1.00Coolant Through: Yes[G] Coolant Hole Thread Size (Decimal Inch): 0.1575[G] Coolant Hole Thread Size (mm): 4.00Insert Holding Method: Clamp ScrewMulti-Use Tool: NoApplication: GroovingToolholder Material: CarbideUnit of Measure: MetricCompatible Insert Hand: Right-HandCompatible Inserts (Partial): GER…C, GER…CM, GER…CRSIGE Internal Grooving Brochure

• Right-Hand Toolholder with a Clamp Screw Insert Holding Design for Internal Grooving
• Internal screw clamp holder provides excellent chip evacuation
• Very stable machining with long tool life
• Compatible with Right-Hand GER…C, GER…CM, GER…CR Inserts
