TEN-HIGH 6090 2200W CNC Router Engraving Drilling Milling Machine,usb port with 4th axis and sink device.

Features: This machine is equipped with 4th Axis, 3D engraving can be achieved; with sink device, you can engrave jade and soft metal(aluminum, copper, gold, silver). Suitable materials: wood, plastic, agate, jade, beeswax, shells, amber, stone, tooth, bamboo, acrylic, plexiglass, PVC, double color plate, all kinds of bones,soft metal, etc. Specifications: Model: 6090CNC-2200-B-4AXIS-S Dimension: 1200×780×580mm Working Travel: 600*900*125mm Workpieces height: ≤ 125mm Working table: T-slot aluminum alloy(1135×700mm) Structure Material: 6061-T6 Aluminum Alloy Screw: Import 1605 ball screw X guid: Diameter 20mm round guid Y guid: Diameter 30mm round guid Z guid: Diameter 12mm round guid Spindle power: 2200W Spindle Spindle control: 2.2KW VFD Spindle speed: 0-24000r/min Spindle cooling way: water cooling Spindle collet :ER11-3.175mm Stepper: 57BYGH56-401A Stepper driver: 8 division driver NC code: Standard G code、nc、tab、mmg、PLt、eng、dxf Engraving Precision: 0.03mm repeated positioning accuracy: 0.02mm Control software: Mach3 Communication port: parallel port Software running system: xp/win7 32 Voltage: AC220V/AC110V Optional Packing list: 1* engraving machine 1* control box 5* engraving tools 1* spindle wrench 1* parallel cable 1* power cord 1* machine connecting line 4* pressure plate 2* water pump 1* sink 1* 4th Axis (one rotation axis, one connecting wire, one tailstock, six screws and nuts, one set of wrench and claw)

• 【UPGRADED FOURTH AXIS&SKINK】: Compared with the three-axis machine, the four-axis is not only suitable for plane engraving, but also for three-dimensional engraving and round carving. The jade and wood can be engraved 360°, and the power and clamping force are very stable. The sink is made of 304 stainless steel. In order to protect the tool and prevent the tool from heating when processing hard materials, the jade and metal must be filled with a sink.

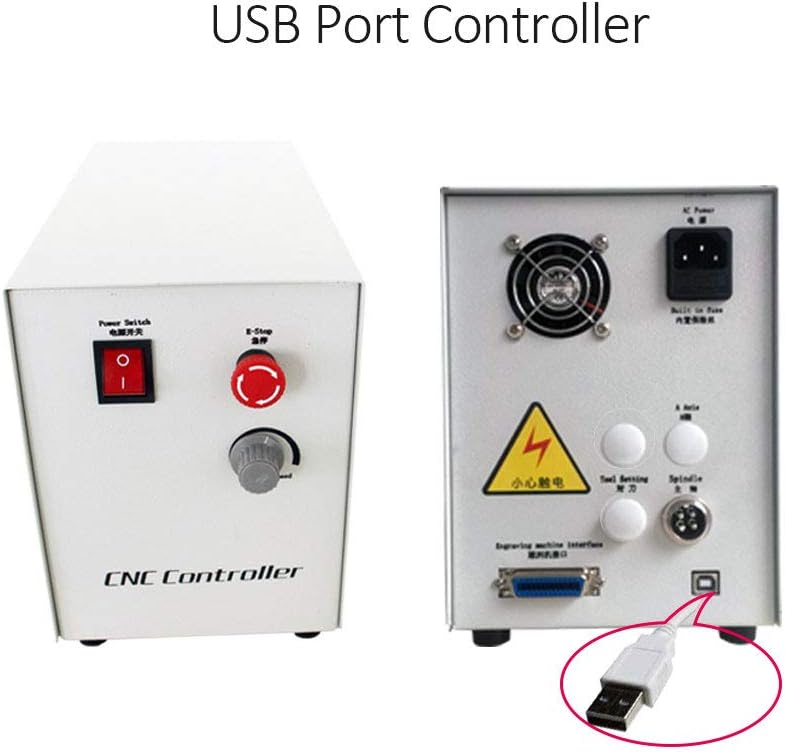

• 【WITH USB PORT】This one is equiped with USB port, support different kind of systems (32bit and 64bit, both computer and laptop).
• 【APPLICATION】: Suitable for PVC, acrylic, two-color board, engineering plastics, Bakelite, solid wood, MDF board,bones,stone,graphite,and other soft metal materials (gold, silver, copper, aluminum, aluminum alloy) engraving and milling.
• 【BALL SCREW】: Upgraded ball screw to make the machine more accurate and stable during operation, with reversibility, high efficiency and low frictional resistance.
• 【WATER COOLING】: The main shaft adopts water-cooled motor, which has low noise and water circulation cooling. It can work for a long time without affecting performance, and the machining accuracy is higher.
